Study of Structural Defects Evolution in Fine-Grained Concrete Using Computed Tomography Methods

Introduction. X-ray computed tomography is a promising technique of nondestructive testing of the state of the material. In the concrete industry, tomography is suitable for determining the structure of concrete samples, microcracks, internal fractures, and studying the distribution of pores and aggregate particles. X-ray computed tomography provides the construction of a model of the microstructure of cement paste, allows us to study the development of cement hydration processes [1][2], to make forecasts of the formation of mechanical characteristics and fracture conditions [3][4]. Computed tomography is actively used for studying the average density and porosity of high-strength lightweight concretes [5], the morphology of structural heat-insulating concrete [6], building a mesoscale 3D model of foamed concrete [7], investigating the formation and distribution of pores in lightweight concrete [8], analyzing the microstructural characteristics of concrete samples with various aggregates [9][10], developing three-dimensional mesoscale models for constructing a finite element grid in modeling the structure of concrete [11][12]. In comparison to standard 2D X-ray methods, the construction of 3D models of multicomponent concrete samples is promising for the study of the fundamental mechanisms of formation of the structure and properties of modern concretes.

The most vulnerable area of fine-grained concrete under loading is the contact zone — the contact areas of cement stone and aggregates. When exposed to external loads, it is from these areas that the formation of microdefects and microcracks starts, whose development causes the defect formation at the macro level, which can lead to loss of bearing capacity and structural failure. The destruction of the contact zones occurs due to the difference in characteristics of the bordering components (Young's modulus, Poisson's ratio, thermal linear expansion coefficient, sizes of the contacting phases, microdefects on the interface of the phases) [13]. The X-ray computed tomography method is promising for studying the evolution of contact zones, including at the early stages of hydration. It provides studying the structure without destroying the sample directly during the hardening process. Contact zones, as a rule, have higher porosity and low strength, as a result of which cracks are formed in these zones [4]. The strength of the contact zones is also affected by the size of the aggregate. It has been established that homogeneous and more durable contact zones are formed in concretes with combined aggregates (coarse fraction and crushed) [14]. There are numerous modern studies on the formation of contact zones of cement stone with reinforcement [15], cracks in popcorn concrete [16], defects at the contact boundary of sand-cement mortar with a coarse aggregate [17]. However, along with this, the formation of contact zones in fine-grained concretes with different fineness and packing density of sand grains is poorly studied. In the modern scientific literature, there is no description of the effect of the size of a fine aggregate on the formation of contact zone defects in fine-grained concretes. Thus, the study of the formation of defects in the structure of fine-grained concrete containing sand of aggregate fractional make-up, to obtain a visual picture of crack propagation by X-ray computed tomography is urgent.

To reduce the stresses that occur in the contact zones, microfillers, similar in their properties to cement stone, are used. These fillers, having an increased specific surface area, create additional contact zones between which the stresses arising from the hardening of the binder are redistributed. Hardening of the contact zones can be achieved through introducing mechanically activated components into the concrete mixture [13]. Mechanical activation of separate components contributes to the formation of a denser structure, the preservation of uniformity in composition, the development of initial strength due to the acceleration of the hydration reaction and the growth of crystallohydrates of cement stone, as well as the reduction in the setting time [18][19]. The development of structural defects in fine-grained concretes modified by mechanical activation of components has also been poorly studied. Among modern scientific papers, there are very few works devoted to the study of crack propagation processes in the modified structure of fine-grained concretes at the initial stages of strength development. Therefore, the use of the computed tomography method to study the mechanics of destruction of samples of modified fine-grained concrete at the initial stages of hardening is important today.

This work was aimed at studying the formation and propagation of cracks in samples of fine-grained concrete with different fractional make-up of sand due to natural processes of shrinkage of cement stone, as well as the mechanics of destruction of samples of modified fine-grained concrete when applying a compressive load at the early stages of strength development.

Materials and Methods. In the research, to determine the defects of the contact zones of fine-grained concretes with different sand gradation, three samples of fine-grained concrete mixture of the following compositions were used:

• composition 1: Portland cement Eurocem 500 super; CEM I 42.5 N (“Petersburg Cement” LLC); monofraction sand (fraction 0.63–0.315 mm); water. The ratio of the mixture components was 1:2.56:0.67;
• composition 2: Portland cement Eurocem 500 super; CEM I 42.5 N (“Petersburg Cement” LLC); polyfraction construction sand according to GOST 8736-2014 with ISO=1.85; water. The ratio of the mixture components was1:2.56:0.67;
• composition 3: Portland cement Eurocem 500 super; CEM I 42.5 N (“Petersburg Cement” LLC); two-fraction sand (fraction 2.5–1.25 mm — 80% of the total mass of sand, fraction 0.63–0.315 mm — 20% of the total mass of sand; no intermediate fraction 1.25–0.63 mm); highly active metakaolin (white) (manufactured by CG “Sinergo”, Chelyabinsk region); microsilica; water. The ratio of the mixture components was 1:1.75:0.43:0.23:0.15:0.67.

Freshly-mixed compositions of fine-grained concrete mix were placed in a polymer cylindrical container with a diameter of 8 mm and a length of about 70 mm. The diameter of the container was determined in accordance with the size of the initial components of fine-grained concrete of the previously mentioned compositions based on the conditions of representativeness [20], and representativeness of the volume under study. To track changes in the structure under cement hydration and cement stone shrinkage, tomography of the samples was performed immediately after mixing the components and after 8 days of hardening. Samples at the age of 51 days were taken as the final result.

In the study on the evolution of the crack formation mechanism during the destruction of samples under the action of an external compressive force, composition No. 3 with two-fraction sand, modified by mechanical activation of the cement and sand composition, was used. Mechanical activation of the components (cement and sand) was carried out using a high energy ball mill Retsch EMax. The components were crushed at a rotation speed of the apparatus bowls of 750 rpm for 5 minutes. Cubic samples of 20×20×20 mm in size were made from concrete mortars, to which an external compressive load was applied after 3 and 7.5 hours. After applying the load, tomography of the destroyed samples was performed to trace the evolution of the fracture mode of the material.

The structure of the concrete samples was studied using a YXLON Cheetah microfocus X-ray computed tomograph with Y. Cheetah configuration. The device specifications are shown in Table 1.

From the perspective of micromechanics of composite materials, the assessment of effective characteristics can be introduced by sets of properties of a representative volume of the body under study. The test sample for tomography should correspond to a representative volume of material, which makes sense of the elementary macrovolume of a microinhomogeneous medium.

During the experiment, after X-rays pass through the sample, a set of flat X-ray images with an uneven distribution of grayness in the images is obtained. This is due to the uneven absorption of X-rays by the components of the studied material — the presence of pores, defects, dense inclusions, etc. After reconstruction of 3D images of the sample, the grayness gradient is inverted relative to conventional X-ray images: the materials that are most transparent to X-rays, e.g., pores, correspond to black, and the densest material is white. The grayness density in full-color representation is considered in the range 0–255, where 0 corresponds to black, and 255 corresponds to white. This algorithm is used to determine the minimum size of features that could be differentiated as structural components of the sample under study: porosity, cement mortar, and aggregate in volume. Further, using this grayscale, highlighting certain numerical ranges, it is possible to analyze a separate internal structure, distribution of components and porosity [21].

The shooting parameters for all the studied samples remained constant: voltage — 85 kW; current — 45 µA; approximation — 8.9; scanning angle — 360°. The survey results represent 1,024 consecutive images of the internal structure of the samples. Further processing of the resulting array of two-dimensional images took place in the “Volume Graphics Studio” program. To improve the visualization of inclusions, editing layered images by brightness and contrast levels was performed. The result of the tomography was a 3D model of the sample and its three projections with the possibility of studying the internal structure in any section.

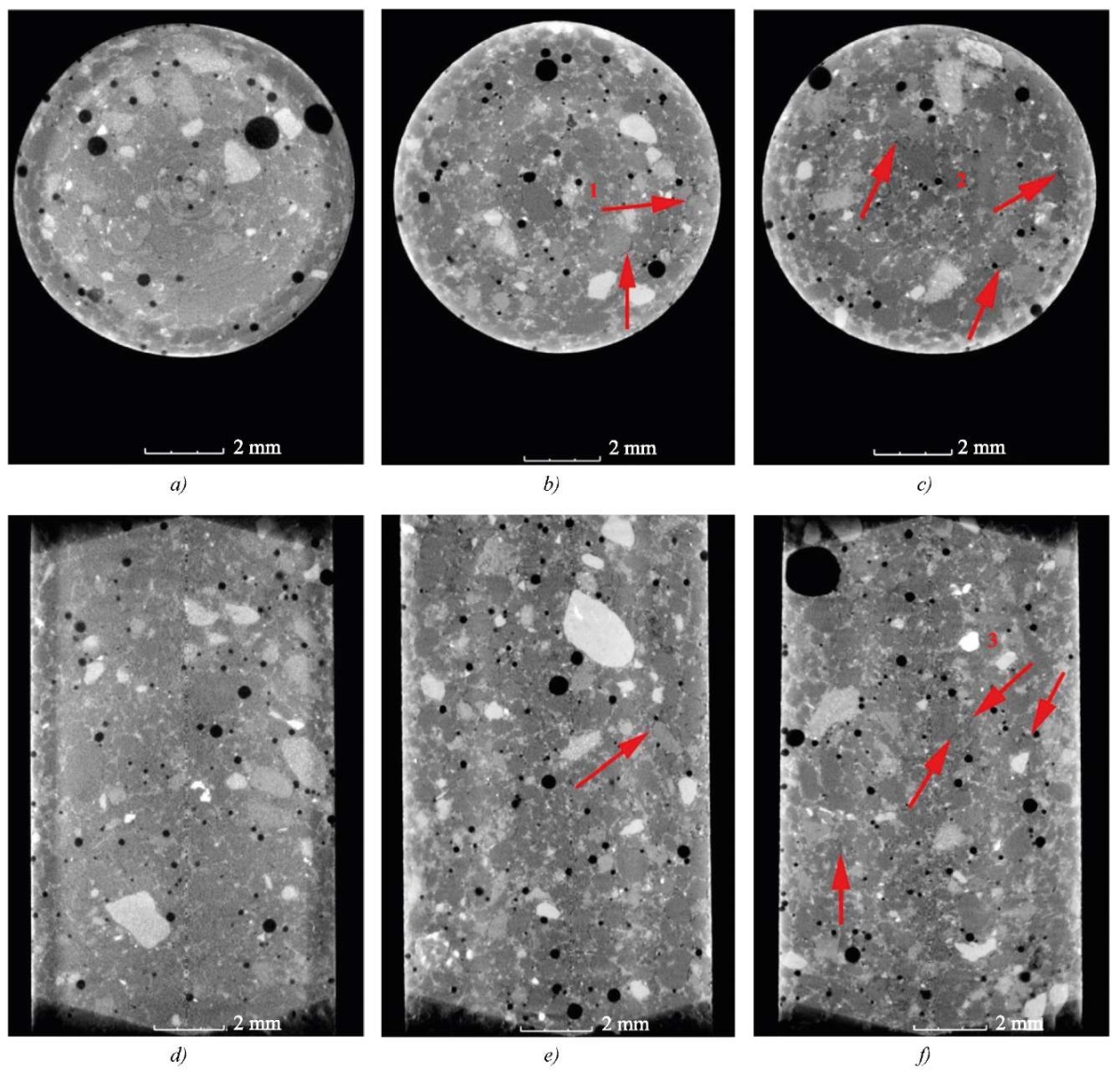

Research Results. Images of the internal structure of samples of composition No. 1 with monofraction sand (fraction 0.63–0.315 mm) at the age of 0, 8, and 51 days obtained by X-ray tomography are shown in Figure 1. The darkest areas in the images have the lowest density, in this case, the pores. The hardest particles correspond to the lightest areas.

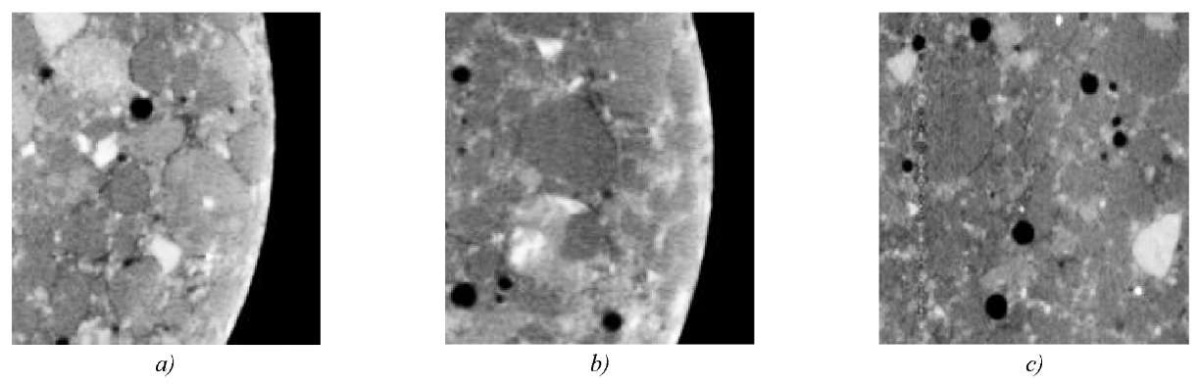

The images of the internal structure of the sample of composition No. 1 with monofraction sand showed no changes in the contact zones immediately after mixing. By the 8th and 51st days of hardening, dark stripes were visible around separate sand grains (indicated by red arrows), corresponding to voids that were formed due to shrinkage of the cement stone. Moreover, with the increasing age of concrete, such voids around the sand grains visually became more numerous. Enlarged images of separate fractured voids are shown in Figure 2.

In fragments 3 and 4 corresponding to sample No. 1 at the age of 51 days, the mode of the manifestation of defects in the contact zones around sand particles was most pronounced. This was confirmed by the fact that by 51 days, the process of shrinkage of cement stone was almost complete, whereas at the age of 8 days, the shrinkage was in the active phase.

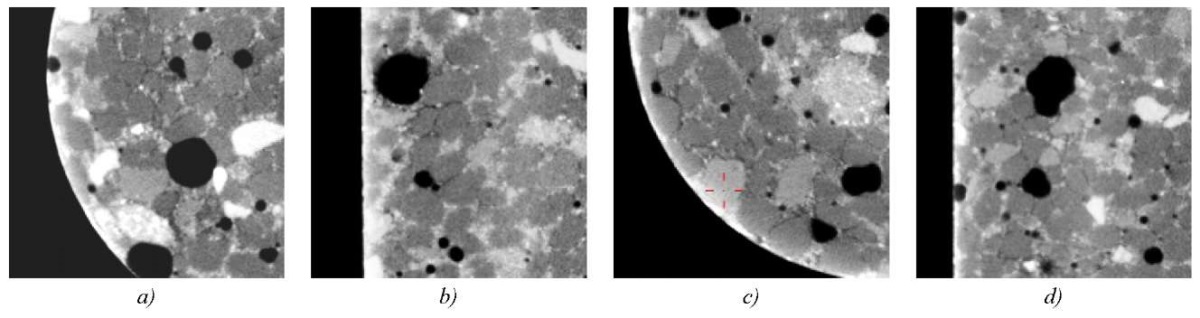

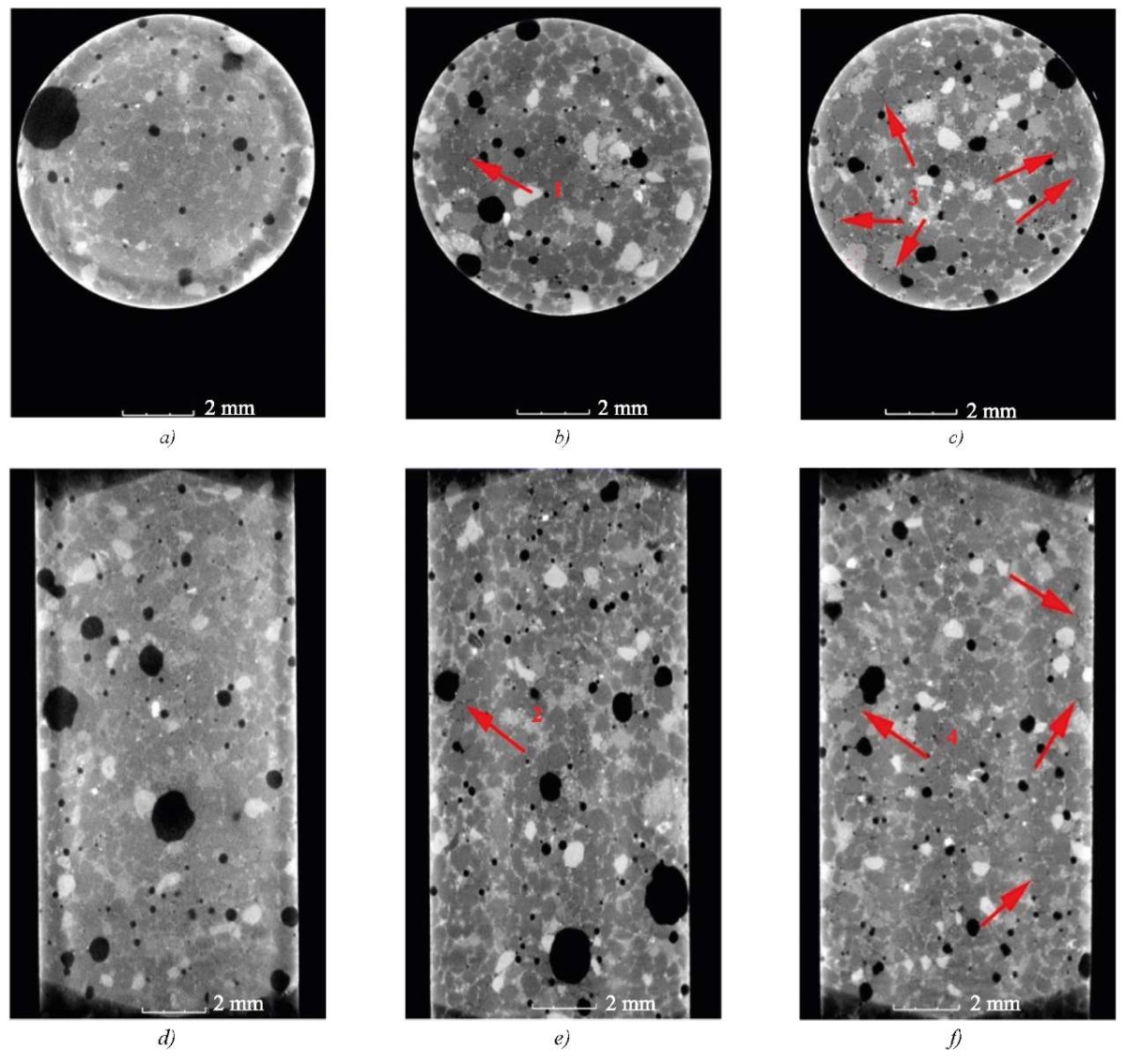

Images of the internal structure of samples of composition No. 2 with polyfraction sand at the age of 0, 8 and 51 days are shown in Figure 3. Separate enlarged fragments are shown in Figure 4.

The development of defects in the contact zones of samples of composition No. 2 with a polyfraction aggregate, as in composition No. 1 with a monofraction aggregate, manifested itself by the 8th day of hardening, the number of defective areas increased by the 51st day. It can be noted that the destruction of contact zones around individual large sand particles is not observed.

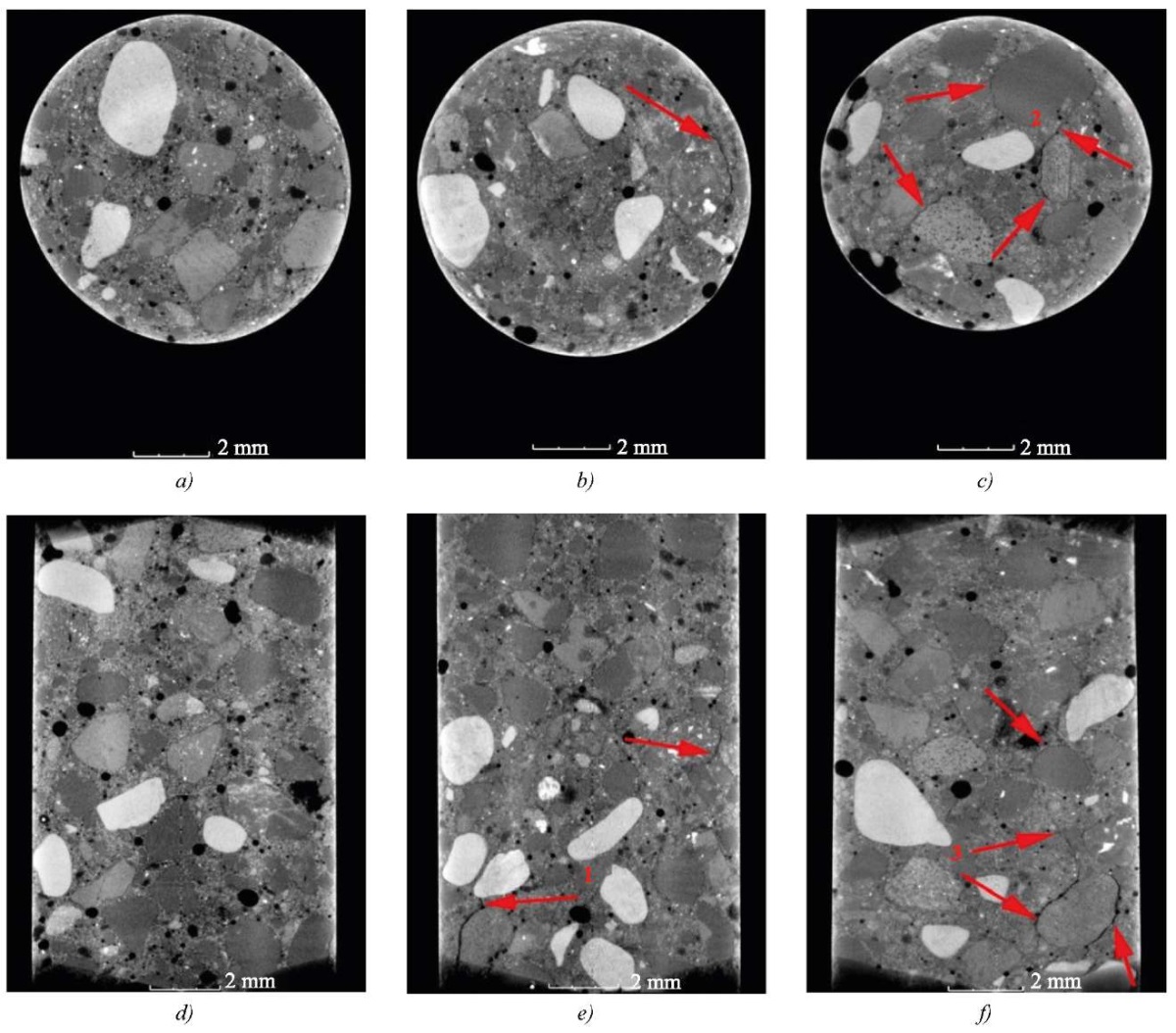

Images of the internal structure of samples of composition No. 3 with two-fraction sand (fractions 2.5–1.25 mm and 0.63–0.315 mm, no intermediate fraction) at the age of 0, 8, and 51 days are shown in Figure 5.

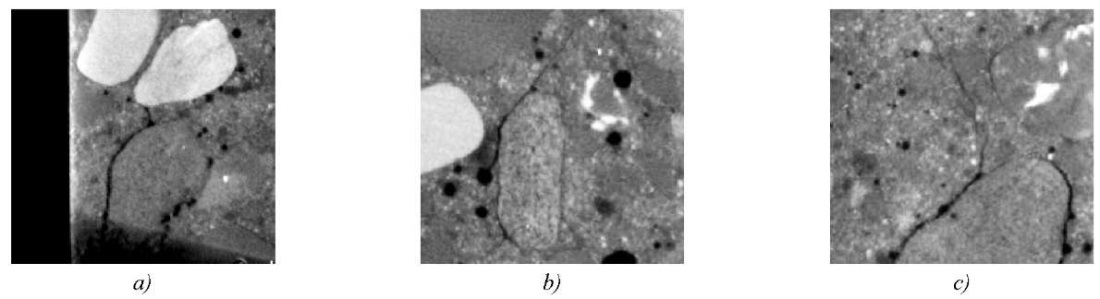

In the images of the internal structure of the samples containing two fractions of sand, at the age of 8 and 51 days, a clear formation of cracks around large grains of sand was observed, and the main mode of the crack formation was traced when the cracks were connected to each other (Fig. 6).

The formation of main cracks near coarse sand grains indicated that the contact zones around coarse aggregate particles were most stressed and susceptible to destruction during the shrinkage of the cement stone.

Based on the obtained images of the internal structure of samples with different sand sizes, it can be concluded that the development of contact zone defects due to shrinkage of the cement stone depends on the ratio of fraction sizes. In samples with mono- and polyfraction sand, the defective structure develops locally, the area of such defects is visually much smaller than in samples with two fractions of different sizes. In the presence of a coarse fraction of sand with a high-volume concentration, defects in contact zones develop near coarse grains and have the main mode.

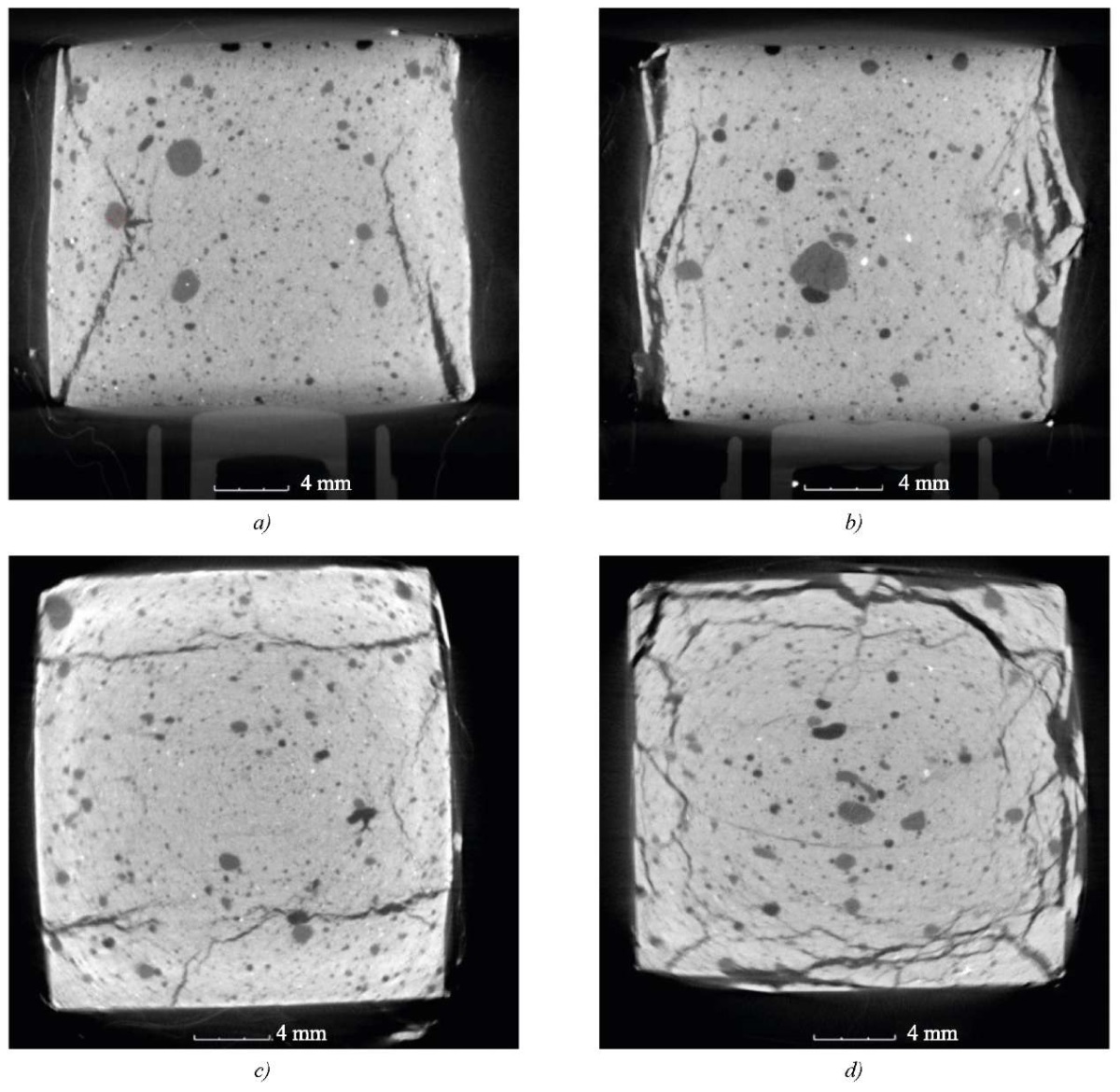

Cube samples of composition No. 3 with two-fraction sand, modified by mechanical activation of individual components, were subjected to the application of external compressive load at the age of 3 and 7.5 hours after preparation. Images of the deformed internal structure of the samples are shown in Figure 7.

The images showed the evolution of hardening concrete samples from elastic-plastic to brittle fracture. The samples tested 3 hours after production had an elastic-plastic fracture pattern, with clear cracks and chips on the sample edges. At the age of 7.5 hours, the sample edges were covered with a network of small cracks during fracture, and there were also numerous cracks and microcracks inside the sample, indicating brittle fracture.

Discussion and Conclusion. Thus, by means of mechanical tests and X-ray computed tomography, it is possible to track the processes of destruction in the structure of fine-grained concrete. The results obtained give rise to a new complex method for assessing the structural characteristics of modified fine-grained concrete at all stages of strength development.

It has been established that the destruction of contact zones depends on the ratio of fraction sizes. In the bulk of coarse sand particles in the body of concrete, the destruction of contact zones is more pronounced and has the main mode. When using fine or polyfraction sand, contact zones are destroyed locally and have a visually smaller area. This indicates that contact zones near coarse aggregate particles are most stressed and are primarily subject to destruction under the shrinkage of cement stone.

The studied dependences of the influence of the fine aggregate sizes on the mechanisms of formation and propagation of structural defects contribute to the theory of destruction processes of fine-grained concrete. The results obtained prove the prospects of using X-ray computed tomography as a method of non-destructive testing of the internal structure of fine-grained concrete, including at the early stages of strength development. Computer tomography, along with traditional methods of investigation of the structure and properties of building materials, gives rise to a new complex method that provides studying modern multicomponent concretes at all stages of strength development, the mechanisms of formation and propagation of structural defects due to natural processes of changing the state of the material and under various external loading conditions.
