Mathematical Model of the Thermal Regime of a Small-Sized Convective Dehydrator and Identification of Its Parameters

Introduction. Convective drying of food raw materials is one of the most common methods of canning, while dried fruits alone are produced in the world over three million tons annually, and volumes continue to grow [1][2]. Due to the duration and energy consumption of the process, when less than 50% of energy is spent directly on moisture removal [3], optimization of drying is an urgent task. Targeted optimization is possible only if there is an adequate mathematical model of both the equipment and the drying process.

A significant number of models of food drying processes have been published in the scientific literature. The predominant approach is to approximate the kinetics of drying by various empirical functions: the Lewis model [4], modified exponential models of Page [5] and Henderson-Pabis [6], combined Yaldiz models [7], and polynomial approximations [8]. Researchers are analyzing the applicability of various models for specific products: in [9], an artificial neural network was used to study the kinetics of drying wild bitter watermelon, in [10], the drying of avocado peel was studied, in [11], convective dehydration of carrots was studied using a statistical approach to curve identification [12]. However, this approach is traditional, but “situational” and does not sufficiently reflect the physical patterns of heat and mass transfer during drying.

A more promising method is dynamic modeling based on differential equations, the parameters of which are better amenable to physical understanding [13][14]. A critical analysis of the literature has revealed a significant gap: when modeling drying processes, the mathematical model of the equipment itself is usually not used or simplified, which limits the applicability of the results. The dehydrator model should describe the processes of heat transfer and air circulation, including such hard-to-reach parameters as volume flow and air circulation coefficient, which significantly affect the accuracy of modeling [15]. Despite the distributed nature of the processes [16], the use of ordinary differential equations ensures interpretability of the results while maintaining sufficient accuracy.

A significant number of scientific publications in recent years has been devoted to the use of artificial neural networks to study food dehydration processes, build mathematical models, and optimize parameters. A comprehensive review of the use of artificial neural networks in drying is presented in [17]. Among such works, it is worth mentioning [18], in which the authors use a neural network approach to improve the drying process of pear slices. In [19], a neural network model is used to simulate the drying process of zucchini slices. In [20], the authors apply a neural network approach to simulate the drying process of *Phyllanthus emblica* in a complex infrared drying process with ultrasonic activation. Another example of successful application of neural networks (ANN) in modeling complex multiparametric processes in food production is work [21]. Despite the promise of the neural network approach, traditional modeling can be more effective for deterministic technical systems due to a better understanding of physical processes and lower requirements for the amount of experimental data.

The objective of this study is to develop a mathematical model of the thermal subsystem of a small convective dehydrator based on ordinary differential equations with the identification of hard-to-reach parameters. To achieve the goal, the following tasks were set: to analyze the design of the dehydrator and the influence of the control system; to build a mathematical model in the form of an ODE system; to develop a simulation model in the MATLAB/Simulink package; to conduct experimental studies of temperature conditions and energy consumption; to identify model parameters, including air flow and circulation coefficient; to verify the model by comparing simulation and experimental results.

1. Materials and Methods

1.1 Design of a small-sized dehydrator

To build a laboratory installation designed to study drying processes, a household convective dehydrator with horizontal air movement and 12 trays for the dehydrated product was used (Fig. 1). The maximum power of the dehydrator was 800 watts, the air movement was provided by two propeller fans.

The design characteristics of the dehydrator (Fig. 1) are shown in Table 1.

1.2. Microcontroller control and monitoring system

The temperature control system and timer present in the dehydrator were disabled, and the original microcontroller control system was installed instead. Figure 1 b shows the installation locations of the control system sensors: S1 — BME-280 sensor for outdoor air parameters; S2 — BME-280 sensor for hot air parameters at the outlet of the dehydrator chamber; S3 — DS18B20 sensor for air temperature after the heater.

The control system was independently developed, manufactured and implemented by a team of the authors. The structure of the system is shown in Figure 2. The system was based on the ESP32-WROOM-32 IoT microcontroller. BME-280 MEMS sensors were used to measure air parameters (temperature, humidity, pressure). A DS18B20 digital thermometer was used to control the air temperature after the heater. The fan and heater were controlled via OMRON G3MB-202P and JOTTA SSD-40DA solid-state relays, respectively¹.

The microcontroller control system provided the following possibilities for controlling the dehydrator:

• regulation of the air temperature after the heater using a software PI controller in the range from 30 to 100°C with a discreteness of 0.25°C;
• measurement of temperature, relative humidity and air pressure with errors of 0.5°C, 3% and 1 gPa, respectively;
• the period of measuring the parameters of the dehydration process is at least 10 times per minute;
• information about the dehydration process is transmitted via the serial port to the connected computer and in parallel to the Telegram bot. The information transfer period is 1 minute;
• the BME280 sensors are temperature calibrated using a DS18B20 digital thermometer (as a reference) according to GOST 8.558–2009². The calibration coefficients are entered into the program of the dehydrator control system;
• the dehydrator is controlled either directly by sending commands via the serial port of the connected computer, or remotely via a Telegram bot.

The use of the Telegram bot cloud technology provided a unique opportunity for both the Russian and Serbian teams to receive information about the operation of the experimental facility instantly and synchronously. The Telegram bot allows you to quickly receive telemetric information about the drying process, as well as remotely control and configure the dehydrator.

The application of the developed dehydrator control system made it possible to implement a methodology for conducting experimental studies that provided online monitoring of the dehydration process, as well as to build and identify a mathematical model of the dehydrator.

1.3 Mathematical model of the dehydrator

The structure of the mathematical model of the dehydrator, based on a priori concepts of heat exchange processes and heat flows in it, is shown in Figure 3.

The model includes three heat storage units – a heater, hot air inside the dehydrator, and structural elements of the dehydrator connected to each other and the external environment by seven heat streams. The model is created in the formalism of ordinary differential equations (ODEs) and is described by a system of three first-order differential equations (1):

. (1)

The following notation is used in equation (1) (Table 2):

Considering the system of equations of model (1), it should be recognized that it is rather cumbersome and not very convenient for modeling. Therefore, we transform it to the form (2) and enter the coefficients of the equations in Table 3:

. (2)

When converting system of equations (1) to form (2), it can be noted that a₂₁ = a₃₃, a₃₁ = a₁₂ = a₁₃/k_circ. In addition, it should be noted that system (1) uses a mass flow rate of air f_air, and during the identification process, the value of the volume flow is obtained f_{air, V}. These quantities differ by the value of the air density, which depends on the temperature.:

(3)

The numerical values and expressions for the coefficients of the equation are given in Table 3

Table 4 shows additional model parameters measured or taken from reference books.

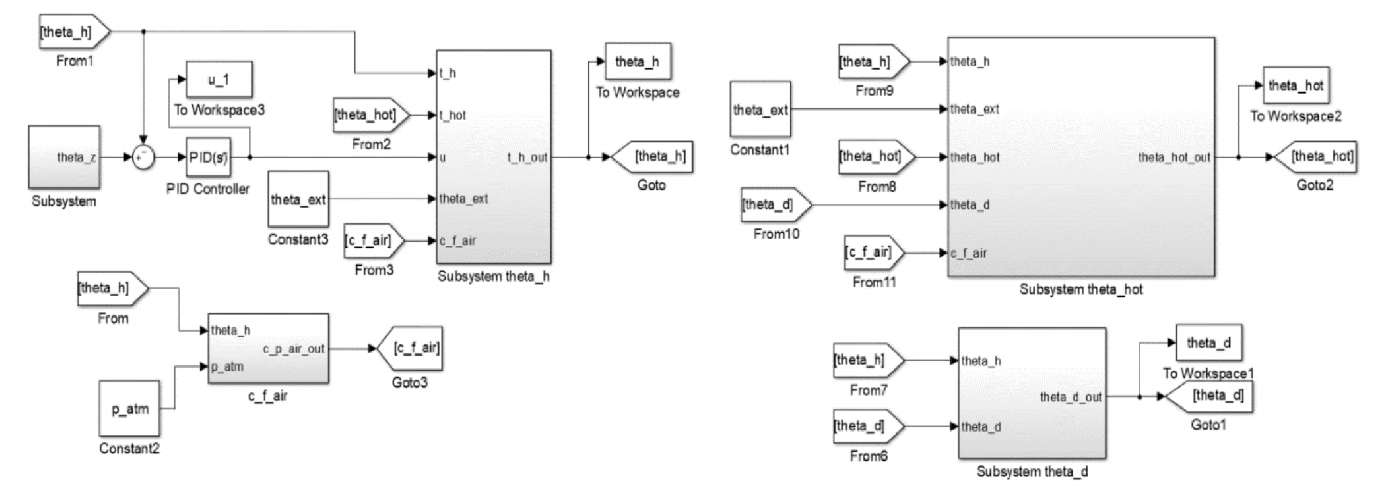

Figure 4 shows the general structure of the dehydrator model in the Simulink mathematical package.

The model consists of three dynamic subsystems describing the dynamics of heat exchange with the heater, with the internal structures of the dehydrator and with the air inside the dehydrator. The fourth subsystem is used to calculate the heat flow carried out by air from the dehydrator.

Let us take a closer look at the following aspects. A priori information about the functioning of convective dehydrators of the considered design indicates the presence of convective air movement inside the dehydrator chamber. However, it is difficult to analytically estimate the “circulation coefficient”, that is, how many times the air passes over the product before leaving the dehydrator. To account for this effect, a dimensionless circulation coefficient k_circ is introduced into the model, which will be estimated during the identification of model parameters.

Similarly, the heat transfer coefficient from the air to the structural elements of the dehydrator α_d is introduced into the model. Based on general physical considerations, this coefficient should have the following form (4):

(4)

where v — air velocity in m/s. However, based on the fact that this speed will be constant in the stationary operation of the dehydrator, and on the other hand, its measurement presents certain difficulties, we will consider this coefficient constant and identify it as a constant.

For the coefficients of heat transfer from the dehydrator chamber to the external environment through the walls, it is incorrect to assume the constancy of the transfer coefficient. Based on formula (4), it is necessary to take into account that the speed of the upward movement of the outside air along the wall of the dehydrator will depend on the temperature difference between the air inside and outside. That is, it is advisable to present this coefficient as (5) and identify it accordingly:

(5)

However, the identification of the mass f_air (and volume f_{air, v}) air flow coming out of the dehydrator and carrying away heat and moisture is of the greatest practical interest. The mass and volume air flows leaving the dehydrator are related to the air density ρ_air(ϑ_hot, P_atm) by the following ratio (6):

(6)

where M_air — molar mass of air, R_air — gas constant of air, and P_atm — atmospheric pressure.

The air flow from the dehydrator is determined by the excess air pressure on the inner front wall of the dehydrator chamber. The pressure is created by rotating fans. From general physical considerations, it seems that at a constant rotational speed, the volumetric air flow rate should not depend on the air temperature, since its value is determined by the geometric design of the fan blades and their rotational speed.

The authors have tested several physical approaches to measuring the amount of airflow:

• by directly measuring the flow velocity using an anemometer;
• by directly measuring the difference in air pressure inside and outside the dehydrator and estimating the air flow rate passing through the holes in the walls of the dehydrator using the Bernoulli formula;
• by the magnitude of the force acting on the dehydrator door (for indirect determination of the pressure drop), and then using the Bernoulli formula, as in the previous paragraph.

However, none of them, due to insufficient accuracy, allowed us to obtain a reliable and plausible estimate of the cost. For this reason, it was decided to estimate the amount of airflow based on energy considerations — based on the amount of electrical power that is consumed to heat an unknown amount of airflow with known physical characteristics. The procedure for identifying model parameters developed by the authors is discussed below. At the same time, the maximum possible number of parameter values was measured directly or taken from reference books. Thus, it is necessary to identify the following model parameters: flows f_air and f_{air, v}; total heat transfer coefficient A_{ext, 0} + A_{ext, 1} ⋅ (ϑ_h – ϑ_{ext_air}) ⋅ S_ext/d; circulation coefficient k_circ.

Analyzing model (1), it can be seen that some of the identified parameters can be obtained from static equations, that is, from equations describing the steady-state operation of the dehydrator (7):

. (7)

Moreover, it makes sense to analyze the first and third equations, whereas the second one turns out to be degenerate in the steady-state operation of the dehydrator. From the first equation, we can estimate the power carried away by the air flow and the air circulation coefficient k_circ:

(8)

From the third equation, we can estimate the amount of heat loss through the walls of the dehydrator:

(9)

where the heat transfer coefficient itself is understood as a linear function of the temperature difference inside and outside the dehydrator:

(10)

Identification is carried out based on the results of experimental measurements on a real dehydrator, during which the following parameters are recorded: ϑ_h — temperature of the air after the heater; ϑ_{hot_air} — temperature of the hot air at the outlet of the dehydrator chamber; ϑ_{ext_air} — temperature of the air outside the dehydrator (indoors); u(t) — continuous operation of the heater under the control of the PID controller; P_atm — atmospheric air pressure.

A matrix implementation of the least squares method was used for identification:

(11)

where Y — vector of experimental results, X — matrix of explanatory variables, and Θ — vector of parameter estimates.

For the first equation, these values are formed as follows:

, (12)

where N — sample length of the experimental data.

For the third equation:

(13)

The identification procedure was performed in the MATLAB mathematical package. The identification results will be described in the Results section, and the identification experiments will be described in the next section.

The internal design of the dehydrator assumes the presence of an air flow returning to the heater along the side walls of the dehydrator and losing some of the heat due to its transfer through the walls to the external environment (Fig. 1 b).

Accordingly, the first equation of system (1) contains a flow describing the process of returning circulating air to the heater:

(14)

where k_circ — coefficient showing how many times the air “wraps around” inside the dehydrator before leaving it.

The equation for calculating the amount of mass air flow will have the following form (15):

(15)

The conversion of mass flow into volume flow is carried out from formula (15) using formula (6):

(16)

It should be borne in mind that air circulation is “unobservable” and manifests itself only indirectly depending on the volume flow rate and temperature. However, if we perform a series of calculations of the dependence of volume flow on temperature for different values of the circulation coefficient, we can “choose”k the most plausible value that will give the best approximation f_v(ϑ_h) of a horizontal straight line (more precisely, a straight line with the smallest angle of inclination to the horizontal). The least squares method (LSM) can be used to obtain estimates of the coefficients of the equation of the approximating line:

(17)

A two-stage search method was used to identify the circulation coefficient k_circ. At the first stage, when identifying the parameters of equation (8), values of k_circ in the range from 0 to 20 in increments of 1 were used. At the second stage, when a rough estimate of the suboptimal value of k_circ in the region of 10 was obtained, the range from 9 to 11 in increments of 0.1 was used. The optimal value of k_circ was considered to be the value at which the approximating line of dependence f_{air, v} on temperature, had the minimum modulo tangent of the angle of inclination (was as close as possible to the horizontal line).

1.4 Description of experimental studies

Experimental studies on a small-sized dehydrator with a microcontroller control and monitoring system were carried out to identify the parameters of a mathematical model of the dehydrator thermal subsystem.

The dehydrator operation mode with a stepwise temperature change was used to identify the model. The air temperature sensor after the heater (DS18B20 thermometer) and BME-280 sensors (outdoor air parameter sensor and hot air parameter sensor at the outlet of the dehydrator) allow you to measure the air temperature immediately after the heater, as well as the temperature, relative humidity and air pressure outside the dehydrator and at the outlet of the chamber. The approximate location of the sensors is shown in Figure 1 b.

Standard stainless-steel trays (12 pieces) with a total weight of 2,450 kg are placed in the dehydrator chamber to increase its thermal inertia and reduce temperature fluctuations.

Temperature control is performed programmatically, using a PID controller implemented in the program, the library of which is taken from the website³. The program graph of temperature changes set to the controller is shown in Figure 5. The experiments were carried out in automatic mode.

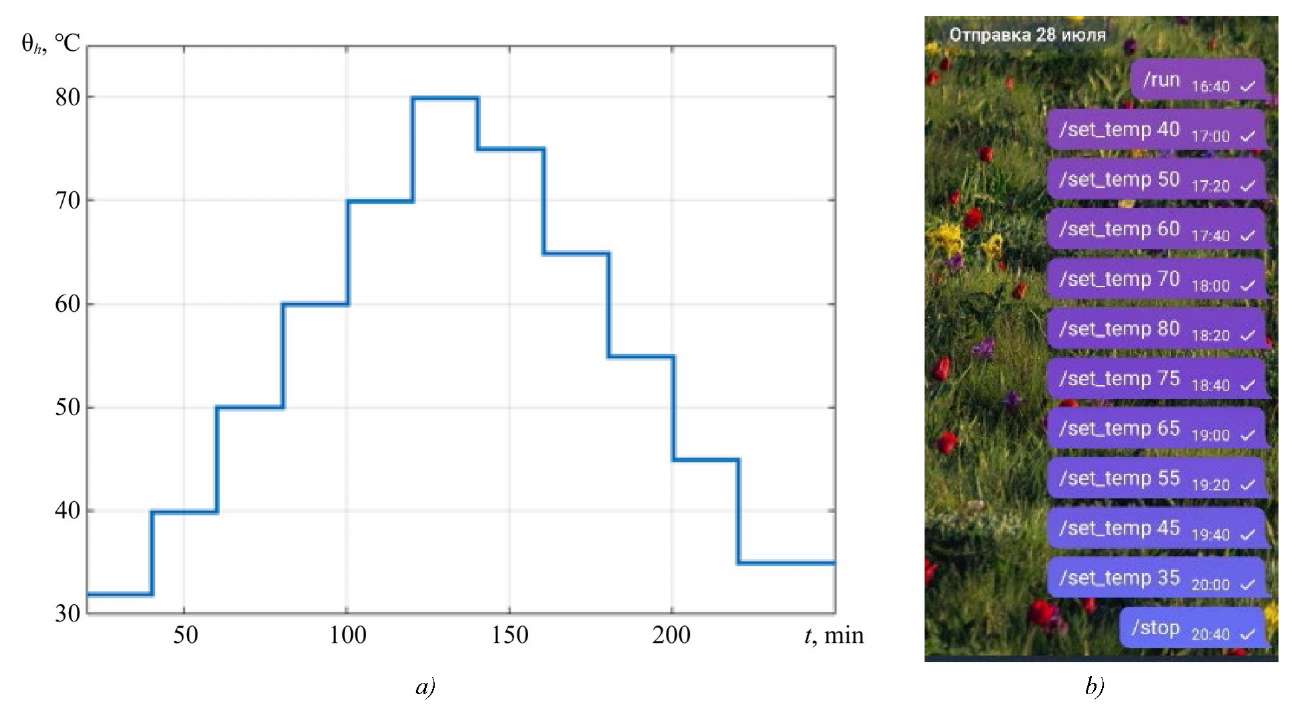

The programmed temperature change in the dehydrator was performed in steps of 10 degrees until the temperature reached 80°C. After reaching the maximum, the temperature was reduced programmatically in similar steps of 10 degrees, with an offset of 5 degrees relative to the increase stage (Fig. 5 a).

One cycle of the experiment looked like this:

1. Empty trays were loaded into the dehydrator at room temperature.
2. A temperature change program was set in the Telegram bot (as shown in Fig. 5 b). The initial temperature was set to 30 degrees, the coefficient of the integral component of the PID controller was set to 0.3, and the coefficient of the proportional component was set to 200.3. The drying process was started by a command from the Telegram bot.
3. The values of the air parameters from the three sensors and the current power of the regulator were automatically transmitted to the cloud service of the telegram bot every minute.
4. At the end of the experiment program, the dehydrator was automatically switched off. The data was uploaded from the cloud service to the computer and saved as a json file for further processing.

This design of the experiment made it possible to exclude any influence of the human factor and external effects.

2. Results

This section will present experimental and simulation results for the study of a mathematical model and the identification of its parameters using the methods described above.

2.1 Identification and investigation of the mathematical model

The dehydrator control program provides a stepwise increase and then decrease in temperature after the transient attenuation during experiments to identify the mathematical model.

2.1.1 Determination of the air flow through the dehydrator

Based on model (1) and taking into account its transformations (14)–(16), as well as using the data of the new experiment, which are presented in Figures 6-7, it is possible to calculate the value of the mass air flow through the dehydrator as a function of the air temperature after the heater (Fig. 9).

The upper graph shows the program for changing the air temperature immediately after the heater. Minor fluctuations are associated with the operation of the PI controller and the low thermal inertia of the empty dehydrator.

The middle graph shows the outside air temperature readings (Fig. 6). There is some instability, but it is only about 4 degrees when the air temperature changes by 40 degrees after the heater. This effect occurs due to the heating of the external air from the dehydrator housing.

In Figure 7, we see the instantaneous value of the heater power, calculated as the product of the maximum heater power and the borehole of its operation. Due to the operation of the PI controller in the microcontroller of the control system, fluctuations are observed after switching the temperature, but then the heater power stabilizes.

In Figure 8: flow_RAW (f_RAW) — mass air flow calculated from the initial experimental data; flow_m (f_m) — mass air flow calculated after applying the intervals (Fig. 6, red vertical lines) in which the temperature, ϑ_h has stabilized; flow_v (f_v) — volume air flow calculated from f_m using formula (6).

2.1.2 Estimation of the circulation value

The results of the identification of the straight line (17) at values k_circ in the range from 7 to 15 are shown in Figure 9 a, b. The upper graph shows the dependence of the coefficient (the tangent of the angle of inclination of the straight line), and the lower graph shows the coefficient, the constant component of the flow.

Graph 9 a shows a calculated curve describing the dependence of the tangent of the angle of inclination of the approximating straight line on the value of the circulation coefficient. The point of its intersection with the axis of the abscissa allows you to determine the real value k_circ = 10.2.

The straight line in Figure 9 b allows us to determine the volume flow rate for the obtained circulation coefficient. Value of k_circ =10.2 corresponds to volumetric flow rate f_v = 0.003096 m³s⁻¹, or approximately 3.1 l/s.

2.1.3 Heat loss assessment

As the basis of an identifiable mathematical model of heat loss through the walls of the dehydrator, we take equation (8) and look for the value of the total heat transfer coefficient as a linear function of the temperature difference, according to expression (10).

The identification procedure is based on the same principle as for the identification of the parameters of the air flow equation. The temperature measurement results obtained by stepwise changing the controller setting were averaged over the intervals after the transient attenuation and processed using the least squares matrix method in form (10). The experimental results and the approximating line are shown in Figure 10.

The actual calculated values of the coefficients of the approximating line are given in formula (18):

(18)

Thus, an estimate of the heat transfer coefficient through the walls of the dehydrator chamber to the external environment was obtained. As expected, this coefficient depends on the temperature difference on different sides of the dehydrator wall, and this dependence is close to linear.

2.2 Model verification

To verify the model, an additional experiment was conducted using the methodology described in Section 1.4. The simulation of the dehydrator operation was also performed using the identified parameters of model (2) in the MATLAB/Simulink mathematical package (Fig. 4). To compare the results obtained, output temperature ϑ_hot and the heater temperature ϑ_h graphs synchronized at the beginning of the drying process were constructed. The graph for temperature ϑ_hot, as the most important for further study of the model, is shown in Figure 11.

The estimated deviation of the model data from the experimental data was less than 0.5°C with an increase in temperature from 35 to 80°C and with a decrease in temperature from a maximum to 50°C. With further cooling of the dehydrator, the error is about 1°C.

3. Discussion

The results of the study convincingly confirm the possibility of creating an adequate mathematical model of thermal processes in a small convective dehydrator using the apparatus of ordinary differential equations. The achieved modeling error, which does not exceed 0.5°C in the operating temperature range from 35 to 80°C, indicates a high accuracy of reproduction of real heat transfer processes in the equipment under study.

The main result of the research is the construction, identification and verification of a mathematical model of the thermal subsystem of the dehydrator. Analyzing the results obtained, attention should be paid to the following aspects:

• structure of the developed mathematical model and the selected ODE formalism for modeling;
• obtaining a numerical estimate of the amount of air flow from the dehydrator chamber based on indirect measurements;
• obtaining a numerical estimate of an unobservable but important parameter of the drying process – the air circulation coefficient inside the dehydrator chamber;
• ability to estimate the amount of heat loss through the walls of the drying chamber through the identified heat transfer coefficient;
• verification of model parameters and assessment of its applicability for modeling drying processes.

The development of numerical methods and programs for finite element modeling creates prerequisites for the widespread use of finite element models, including for modeling thermal systems. For example, in [22], the author provides a complex 3D model of a dehydrator for drying corn kernels. However, it seems that the thermal part of this model could be replaced not only by 2D (as the author does), but also by a one-dimensional concentrated model with minor errors. In [23], a finite element model of a dehydrator with horizontal air movement is also constructed, in which the calculated method shows the laminar movement of the air flow along the gratings, which is consistent with the assumptions accepted for modeling about the possibility of using a model with concentrated parameters and ODEs. The adequacy of the model is confirmed by the graph in Figure 11, which shows the air temperature at the outlet of the dehydrator chamber for the experiment and the model. There is a good qualitative and quantitative correspondence between the simulation and experimental results. Some discrepancy in the characteristics is observed at the end of the experiment, when the air temperature inside the dehydrator chamber approaches the ambient temperature. In this case, if the temperature difference inside and outside decreases, the air movement along the outer wall of the dehydrator becomes less stable, and heat transfer decreases compared to formula (1.8). As a result, the real dehydrator cools down more slowly than the simulated one. The deviation in steady-state mode was about 0.9 degrees.

Although the effect of internal air circulation is indeed used in a number of designs of domestic and industrial dehydrator designs, the authors failed to find a detailed analysis of this effect in the scientific literature. The processes of heat and mass transfer during drying, as well as their mathematical modeling, are considered, for example, in [24]. However, unlike the proposed model (1.1), the authors do not take into account the possibility of reverse air circulation in the dehydrator chamber. At the same time, this process is essential for the considered equipment (Fig. 1). A similar situation is described in [25], where only direct air flow is also considered. At the same time, the variability in air velocity is small, which leaves room for further experiments to optimize the drying process. In [26], detailed attention is paid to the processes of heat transfer using infrared radiation, but the convective component of the drying process is described in less detail. In [27], the design of an industrial dehydrator uses an external air flow circulation system, including one with a controlled inlet flow. It is shown that regulation of circulation makes it possible to increase the coefficient of productivity (COP) up to 39%, which underlines the importance and relevance of the presented studies. However, it is precisely the circulation coefficient (multiplicity of air passage over the product) that is not analyzed in [27], which distinguishes it from the presented study, that makes it possible to quantify this coefficient.

The study of the effect of the air velocity in the dehydrator on the intensity of moisture loss was performed in [28]. It shows that the effect of temperature is less significant at high air velocity. This once again confirms the importance of assessing the magnitude and circulation of the air flow inside the dehydrator. In [29], based on a study of the kinetics of drying tomato slices, it was concluded that an increase in the air flow velocity by one and a half times can increase the efficiency of water diffusion by up to 25%. This determines the prospects of controlling the air flow velocity during drying to increase energy efficiency and reduce drying time. At the same time, direct measurement of the air velocity inside the dehydrator is usually difficult. For this reason, the proposed method for estimating the amount of air flow based on energy characteristics seems to be practically promising. The margin of error can be estimated at no more than 10%.

Separately, we should mention work [30]. It is an experimental study of the drying process of apple slices, where two directions of air movement are considered: above the grate with samples and through the grate with samples. At the same time, it has been experimentally shown that when air moves through the grate at a lower speed than when moving over the grate (1.7 m/s versus 3.5 m/s), the drying time in the first case is 15% less than in the second. However, in this case, due to the design of the installation, the air passed through the dehydrated product once. The internal air circulation described and identified in our work should significantly improve the situation and increase the energy efficiency of drying.

Analyzing the heat loss in the drying chamber through the walls, and determining the value of the heat loss coefficient as a function of the temperature difference, make it possible to optimize drying modes in terms of energy efficiency, since it reflects “non-industrial” heat losses depending on the design and thermal insulation of the drying chamber. In our opinion, insufficient attention is paid to this heat flow in the works devoted to the energy optimization of the convective drying process [30][31]. Although this dependence can serve as an optimization parameter when selecting drying modes.

It is necessary to point out certain limitations of the developed model. The model is based on the assumption of concentrated parameters and does not take into account the spatial heterogeneity of the temperature field inside the chamber. This simplification is justified for small-sized dehydrators with intensive air circulation. However, for large industrial installations, it may be required to switch to models with distributed parameters. In addition, the model has been identified for the product-free dehydrator operation mode. In the presence of a dewatered material, the thermal balance of the system will change due to energy consumption for moisture evaporation and modification of the nature of air flow.

The practical value of the results obtained is due to the possibility of using the identified model to optimize the drying modes of various products. Knowing the exact values of the air flow and circulation coefficient allows you to calculate the intensity of mass transfer, which is crucial for predicting the kinetics of drying. The model of heat transfer through walls makes it possible to evaluate the energy efficiency of the process and identify ways to increase it. It is noteworthy that when operating at the maximum temperature, heat loss through the enclosing structures accounts for about 24% of the heater power, which indicates the expediency of improving thermal insulation.

The prospects for further research are related to the expansion of the model by including mass transfer processes during the dehydration of specific types of food raw materials. The identified parameters of the dehydrator will serve as the basis for constructing a comprehensive drying model that includes equations of moisture balance, evaporation kinetics, and diffusion.

Conclusion

In the course of research on the development of a small convective dehydrator with a microcontroller control system, as well as the construction and identification of its mathematical model, the following significant scientific and practical results were obtained:

• a mathematical model of a small convective dehydrator has been developed and identified. The model is developed in the ODE formalism. Data has been obtained that the model is adequate in the range of drying temperatures from 50 to 70°C with an error of less than 0.5°C, in the range from 35 to 50°C – with an error of about 1°C;
• a model estimate of the air flow coming out of the drying chamber has been obtained. The volume flow was 3.1 l/s. It is shown that it is possible to model the value of the air outlet flow under conditions where its direct measurement is difficult;
• a model estimate of the air circulation coefficient inside the dehydrator chamber has been obtained. For the experimental conditions, it was 10.2 times. Varying this value by controlling the amount of the output stream provides a potential opportunity to optimize the drying process;
• an estimate of the amount of heat loss through the walls of the dehydrator chamber was obtained as a linear function of the air temperature difference inside and outside the dehydrator. This value makes it possible to evaluate the effectiveness of the thermal insulation of the dehydrator chamber. The assessment is applicable when the temperature difference inside and outside the dehydrator is above 15°C.

The studies performed and the results obtained will make it possible to effectively use the described small convective dehydrator as an experimental installation for studying convective drying processes. In addition, the obtained mathematical model of thermal and air mass transfer processes can serve as a basis for constructing models of the kinetics of drying products by supplementing the equations of evaporation and moisture mass transfer.
