Electronic Structure Characteristics of Complex Chalcogenides, Halides, and Oxides from Quantum-Mechanical Calculations

Introduction. The tasks of semiconductor materials science include obtaining reliable information on the electron-energy structure and chemical bonding, as well as the optical characteristics of complex semiconductors, based on quantum-mechanical calculations and experimental X-ray and X-ray electron spectra. The advantage of using computational models is the ability to study hypothetical, not yet synthesized [1] compounds, as well as the elimination of the need to create suitable samples before starting the research. The objective of this work is to summarize the results of studies of various groups of compounds using reliable, widely validated computational models. Various exchange-correlation potentials were applied in the calculations, but the results closest to the experimental data were previously obtained using the modified Beke-Johnson (mBJ) potential of Tran and Blaha, with the addition of the Hubbard U correction for the strong interaction of electrons in the d- and f-shells, as well as taking into account the spin-orbital coupling (SOC), specifically for the shells of heavy elements. All references to the original articles of the authors of the approximations made in the calculations can be found in [1–4].

A comprehensive literature review of the properties and all studies of the electronic structure using both experimental and theoretical calculation methods was conducted for all the compounds studied. The review has shown the following. The Tl₃TaS₄ compound belongs to the materials used in devices based on the application of surface acoustic waves (SAW) [5]. It is widely used in nonlinear optics and communication devices, such as mobile telephone and television communications [6]. To meet modern technological requirements, research on improving SAW materials should be continued. Several experiments have been previously conducted to study the optical absorption edge, electronic structure, and chemical bonding features in Tl₃TaS₄ [7]. However, the accuracy of the obtained experimental values of the optical band gap and the absorption coefficient is significantly affected by the difficulties of observing d-orbitals over a wide energy range and a number of external factors [8]. The electronic structure and optical properties of Tl₃TaS₄ can be studied in detail based on ab initio calculations, which have been intensively developed and have proven their ability to reproduce reliable properties of materials [9]. The Eu₂Zr₂O₇ compound belongs to the group of pyrochlores with the general formula A₂B₂O₇, where A and B are metal cations, which can be trivalent (Eu) and tetravalent (Zr) [10]. Pyrochlores have significant dielectric constant. They exhibit unique magnetic [11], chemical, mechanical, and electrical properties [12]. Due to this, they can be used as ceramic coatings for thermal barriers, gas sensors, metal oxide transistors, solid electrolytes in toxic cells [13], as immobilization carriers of actinides in nuclear waste, and catalysts for oxidation reactions [14]. In order to create more efficient, reliable and functional devices based on pyrochlores [15], studies were conducted taking into account the development of new technologies in the laser engineering, optics, and materials science [15]. Calculations of the electron-energy structure of various pyrochlores were also performed within the framework of the density functional theory [16], using the exchange-correlation potential in the local density approximation (LDA) and the generalized gradient approximation (GGA). In [16], the importance of considering the Hubbard U correction when calculating the energy of d- and f-states was noted. However, it was not possible to obtain in the calculations the values of the band gap width E_g, comparable with the experimental ones (the calculated values were underestimated compared to the experimental ones).

To obtain a reliable picture of the electron energy bands in the studied pyrochlore Eu₂Zr₂O₇, and then calculate the optical characteristics of this crystal, it was required to use other approximations to the exchange-correlation potential.

Thus, judging by the data presented in the scientific literature, numerous calculations were performed, but they required improvement of the approximations used (this is especially true for exchange-correlation potentials), which is why the Becke-Johnson potential (mBJ) was used by the authors in their early works. In addition, the above-mentioned publications also provide experimental curves of X-ray and X-ray electron spectra obtained by the authors [1] and co-authors [2–4] for comparison with the calculated curves. The objective of this work is to consider the characteristics of the electronic structure exhibited by groups of different compounds (chalcogenides, halides, and oxides).

Materials and Methods. Based on the full-potential, full-electron method of augmented plane waves (Full Potential Linearized Augmented Plane Waves, FPLAPW), implemented in the Wien2k software package [17], model quantum-mechanical calculations of the electron-energy structure of the following three groups of semiconductor compounds were previously performed:

• chalcogenides Tl₃TaS₄ [1], Tl₃PS₄, Sn₂P₂S₆, InPS₄, Cu₂CdGeS₄, Ag₂CdSnS₄, Ag₂HgSnS₄ [2];
• halides Cs₂HgX₄ (X — Cl, Br, I), group APb₂Br₅ (A — K, Rb) [2];
• oxides La₂Zr₂O₇ and Nd₂Zr₂O₇ [3]; Ln₂Zr₂O₇(Ln = La, Nd, Sm, Eu, Gd) [4].

In the unit cell of the crystal, each atom was surrounded by a muffin-tin sphere (mt-sphere), resulting in its entire volume being divided into regions occupied by mt-spheres and the remaining intersphere space. The crystal potential was then calculated in both the mt-spheres and the intersphere space. The intersphere potential was calculated by the method described in [18].

The following mt-radii were used for the atoms of the compound:

(a.u. — atomic unit of length).

The exchange-correlation potential was calculated in the GGA-PBE approximation [19] or in the mBJ approximation [20]. In the Eu₂Zr₂O₇ compound, the rare-earth element Eu had an incomplete 4f⁷ shell. To take into account the strong Coulomb interaction of 4f electrons at one site, the Hubbard-U parameter was used, which led to the exchange-correlation potential PBE + U [21] and mBJ + U [22]. As for other compounds with a 4f shell, the EES calculation in Eu₂Zr₂O₇ was spin-polarized.

The electronic structure of compounds with valence s-, p-, d-electrons was discussed further using the example of the Tl₃TaS₄ compound, crystallizing in a cubic structure with the space group I-43m, and the lattice parameter value a = 7.67 Å [1].

The crystal structure of all studied pyrochlores Ln₂Zr₂O₇ (Ln = La, Nd, Sm, Eu, Gd), compounds with valence f-electrons, is the same and belongs to a cubic lattice with space group Fd3m. In the calculations for Eu₂Zr₂O₇, the lattice parameter a = 10.5438 Å was used. The atomic coordinates [4] are given in Table 1.

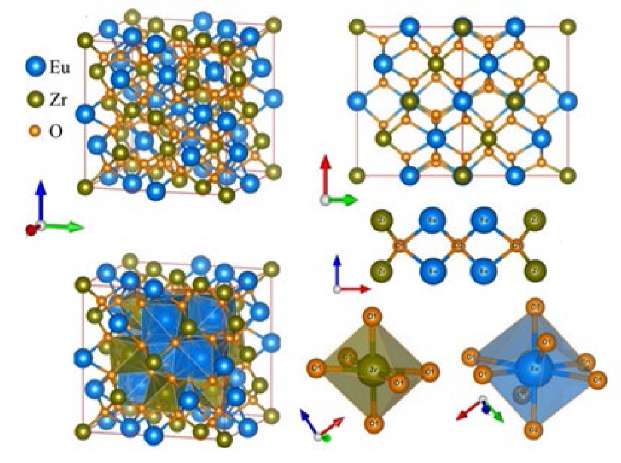

Figure 1 shows the crystal structure and atomic environment of pyrochlore Eu₂Zr₂O₇ [4].

From the occupied electron states in the valence band and the free electron state in the conduction band, the combined density of states can be calculated:

(1)

and further, using matrix elements of the transition from the valence band to the conduction band (only direct dipole transitions with Δl = 1 of the corresponding states of a single atom are considered, cross transitions, as unlikely, are ignored), the imaginary part of the permittivity tensor can be calculated [23].

(2)

where E_kn — self-energy of the system with crystal momentum and spin σ; m and e — electron mass and charge, respectively; V, p, |knpV⟩ and fkn — unit cell volume, momentum operator, crystal wave function, and Fermi distribution function.

Real part ε₁(ω) of the permittivity was calculated using the Kramers-Kronig formula:

(3)

where P — principal value of the integral.

Absorption coefficient a(ω), refractive index n(ω), extinction coefficient k(ω), optical reflection coefficient R(ω) and electron energy loss spectrum L(ω) were derived from the imaginary ε₂(ω) and real ε₁(ω) parts of the permittivity tensor and were calculated, respectively, from the following formulas [23].

Absorption coefficient:

(4)

Refractive index:

(5)

Extinction coefficient:

(6)

Optical reflection coefficient:

(7)

Energy loss function:

(8)

Research Results. Electronic structure of compounds with valence s-, p-, d-states using Tl₃TaS₄ as an example. The results of the study on the electronic energy structure (EES) in the Tl₃TaS₄ compound from [1] are considered. Then, some generalizations are made on the conducted studies on the EES of the above groups of chalcogenides, halides and oxides.

Figure 2 shows a comparison of the calculated total and partial densities of electron states with the X-ray K- and L_2,3 emission spectra and SK absorption spectrum.

The value of the forbidden gap width E_g = 2.842 eV calculated in approximation mBJ+U+SOC is close to the experimental value E_g = 2.7 eV [24].

Based on the energy position of the main maxima of the X-ray emission spectra (SK- and SL_2,3-bands) and the maxima of the calculated densities of electron states in the semiconductor compound Tl₃TaS₄ (Fig. 2), an energy diagram of the maxima of the main energy bands of this compound was constructed (Fig. 3) in comparison with the energy levels in a free atom from [25], with the latter being counted from vacuum zero. Vacuum zero is separated from the zero corresponding to the top of the valence band (E_v) in Tl₃TaS₄ by the work function (φ) and half the band gap (E_g). The following work function values were found for related semiconductors: for TlAsS₄ and Tl₃AsS₃ φ = 5.5 eV, for Tl₃AsS₄ φ = 5.5 eV [26], which allowed us to assume value φ = 5.5 eV or Tl₃TaS₄ as well.

As can be seen in Figure 3, there is a symbatic decrease in the binding energy of the valence 3p and 3s levels of sulfur, the most electronegative (EN) element of the Tl₃TaS₄ compound (EN = 2.44). In the free atom, the binding energies of the 3p and 3s levels are – 10.36 and –20.20 eV, respectively (Table 2), while in crystal Tl₃TaS₄, the average values of the energies of the band maxima of these states are approximately –1.5 ÷ –2 eV for the 3p states, and –11 ÷ 12 eV for the 3s states.

In a solid, the electron density is attracted to a more electronegative atom (in this case, to sulfur S), which causes an increase in the screening of the nucleus of this atom, and therefore, as a consequence, a decrease in the binding energy of both the 3p levels and the 3s levels, compared to their values in a free atom (Table 2).

As stated in Blokhin's monograph [27], the effective nuclear charge is determined not only by internal electrons, but also by external electrons in relation to a given shell, that is, by all the electrons in the atom. According to these concepts, Z_эфф = Z – σ₁, where σ₁ — total screening constant. Determining the screening constant is not the objective of this work, it is a very complex theoretical problem.

For illustration purposes, Figure 4 shows a schematic representation of the internal level shifts for positive and negative ions.

Indeed, for the more electropositive elements in Tl₃TaS₄, namely Tl and Ta, the binding energies of their valence levels increase compared to the energies of a free atom (Fig. 3 and Table 2). The screening of Tl and Tа decreases due to the electron density being drawn toward the S atom, and this causes an increase in the binding energy of the valence and semi-valence levels of the metals.

Similar conclusions about the behavior of the electronic states can be drawn for all the compounds studied (the results are published in [1–4]).

Thus, the electronic p-states of the most electronegative atoms (S, Se, Te, Br, O) in the studied chalcogenides, halides, and oxides, form the upper part of the valence band, which is associated with a significant decrease in the binding energy of these states, compared to their values in a free atom. This decrease in the binding energy of p-states can be explained by the flow of electron density to the more electronegative atom, and therefore by increased screening of these states from the nucleus. The electron s-states of the most electronegative atoms (S, Se, Te, Br, O) in chalcogenides, halides, and oxides, form the bottom of the valence band, and their binding energy also decreases compared to the energy in a free atom.

Electronic structure of compounds with valence f-states using the example of pyrochlore Eu₂Zr₂O₇. To draw general conclusions on the electron-energy structure and optical characteristics of pyrochlores Ln₂Zr₂O₇ (Ln = La, Nd, Sm, Eu, Gd) [3][4], the Eu₂Zr₂O₇ compound was considered.

The valence configurations of the elements included in compound Eu₂Zr₂O₇ are as follows:

Eu — 4f⁷5s²5p⁶6s²

Zr — 4s²4p⁶5d²5s²

O — 2s²2p⁴.

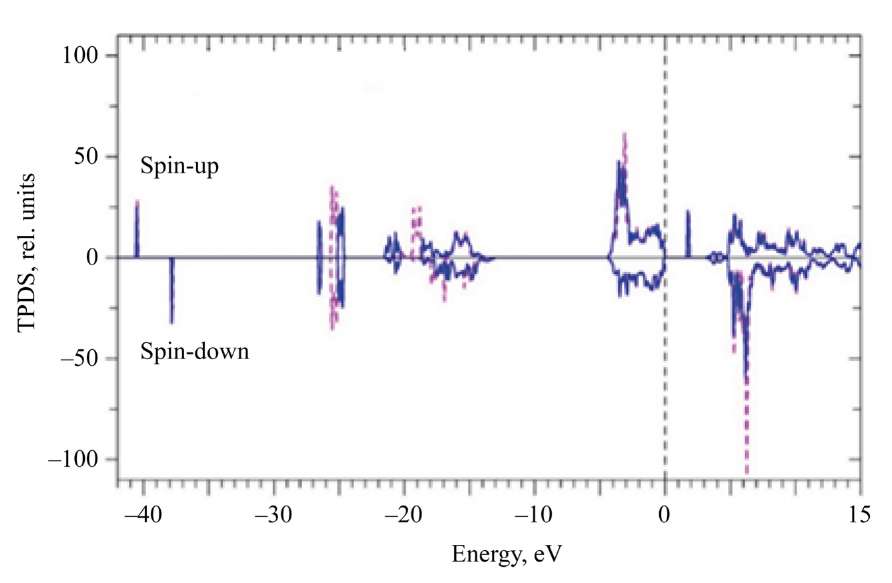

Figure 5 shows the total densities of electron states with spin-up and spin-down for two different approximations: in approximation GGA–PBE+U and GGA–PBE+U+SOC with U = 5 eV for 4f-states of Eu. The addition of spin-orbit coupling (SOC) causes a splitting of 5p⁶-states of Eu into 5p_1/2 and 5p_3/2-states, as well as a splitting of the 4p⁶-states Zr into 4p_1/2 and 4p_3/2-states.

The width of the forbidden band in Eu₂Zr₂O₇, was estimated using the total densities of electron states. The data are presented in Table 3.

Value of U for the 4f states of Eu is 5 eV.

The difference in the total density of electron states with spin-up and spin-down in Figure 5 can be explained using the partial densities of electron states with spin-up (Fig. 6) and spin-down (Fig. 7).

As can be seen in Figures 6 and 7, the upper part of the valence band of Eu₂Zr₂O₇ is formed mainly by 2p states of oxygen (region from 0 to 4.5 eV). Some admixture to the 2p states of O comes from the 4d and 5s states of Zr, as well as the 6s states of the rare-earth element Eu. The most significant admixture in the upper part of the valence band is the 4f states of Eu (the region from –2 to –4 eV). The incomplete 4f shell of Eu contains 7 electrons, whose spins align according to Hund's rule in one direction: in this calculation, this is spin-up.

The spin-orbit splitting of the 5p states of Eu can also be seen in the partial densities with spin-up and spin-down (Figs. 6 and 7). Since the 5p states of Eu are deepened relative to the 2s states of O, the interaction of these states is not as significant compared to other pyrochlores (La₂Zr₂O₇, Nd₂Zr₂O₇, Sm₂Zr₂O₇).

In the present calculation, unoccupied 4f states of Eu appear in the conduction band with both spin-up (narrow peak at 2 eV) and spin-down (narrow peak in the range from 5 to 7 eV).

Another important feature, distinct from previous pyrochlores, should be noted: the peak of spin-up 4f states of Eu splits into two smaller peaks, which is due to the spin-orbit coupling of 4f⁷-electrons. These are 4f_5/2- and 4f_7/2-states. This is not observed in pyrochlores Nd₂Zr₂O₇ and Sm₂Zr₂O₇.

Despite the fact that the 4f shell is located inside the 5s, 5p, and 6s shells, i.e., it is the inner shell in the atom of a rare-earth element (Nd, Sm, Eu, Gd), the energy of the 4f states in a solid, according to the data of these calculations, falls in the upper part of the valence band, and only the 6s states are located above. This energy position of the 4f states can be explained by a significant “centrifugal” contribution to the potential energy: V(r) + l(l + 1)ℏ²/2mr², since the 4f electrons have the largest value of the orbital quantum number (l = 3).

Deeper in energy are the 2s states of O (energy range from –14.5 to –18.5 eV). Even deeper in energy are the Eu 5p states. Already in the atom, the filled 5p subshell of Eu is split due to the SOC into 5p_1/2 (term О2) with an energy of 30 eV and into 5p_3/2 (term О3) with an energy of 26 eV, which is reflected in Table 2. The spin-orbit splitting of the 5p states of Eu can also be seen in the partial densities with spin-up and spin-down (Figs. 6 and 7). Since the 5p states are deepened relative to the 2s states of O, the interaction of these states is no longer as significant, compared to previous pyrochlores (La₂Zr₂O₇, Nd₂Zr₂O₇, Sm₂Zr₂O₇). However, in the case of Eu₂Zr₂O_7, one can also note the admixture of the 2s states of oxygen with the 5p states of the rare-earth element Eu, which is associated with the covalency of the chemical bond Eu-O2.

The 4р⁶-states of Zr, split due to SOC, are located in the energy range of 25–27 eV. These states can be considered semi-core, not participating in the chemical bonding of Zr and O1. The semi-core 5s states of Eu are the deepest of the valence states calculated in this work. According to the Pauli exclusion principle, the two 5s electrons of Eu have different spin directions, which leads to a difference in energy between these 5s states of Eu due to the action of the magnetic field of the 4f⁷- electrons of Eu. The 5s electron of Eu with spin-up deepens to –40.5 eV, while with spin-down, it has an energy of –38 eV. The energy splitting for these states of 5s electrons is ∆E = 2.5 eV.

Calculations show that the spin-up and spin-down electron states of 5s symmetry are split in energy, which can be explained by the action of the internal magnetic field of the 4f electrons, whose spins align according to Hund's rule and act on the spin-up and spin-down 5s electrons (the Zeeman effect).

Increasing the number of 4f electrons from 4 in Nd to 6 in Sm and to 7 in Eu (Nd₂Zn₂O₇→Sm₂Zr₂O₇→Eu₂Zr₂O₇) causes an increase in the magnetic field in the 4f shell and, as a consequence, an increase in the splitting of the spin-up and spin-down 5s states of the rare-earth element (Table 4).

Figure 8 shows the total densities of electron states with spin-up and spin-down compared to the experimental X-ray photoelectron spectrum (XPS). All the fine structure features of the XPS are clearly reflected in the theoretically calculated densities of electron states. The upper part of the valence band from 0 to –5 eV is formed by the 2p states of oxygen, which is reflected in the theoretical and experimental curves.

The most intense peak А in XPS corresponds to the 4f states of Eu, since the photoionization cross section of 4f states significantly exceeds the photoionization cross section of 2p states of oxygen. At an energy of ≈–4 eV, there is an intense peak that precisely reflects the 4f states of Eu.

Gently sloping peak B in XPS corresponds mainly to the 2s states of oxygen, as well as a small fraction of the 5p_3/2- states of Eu. Peak C in XPS is mainly formed by the 5p_1/2- states of Eu with a small admixture of the 2s states of oxygen. Peak D in XPS corresponds to the splitting due to the SOC of the 4p states of Zr. Peak D in XPS has a clear asymmetry, which is precisely due to the spin-orbit splitting of 4р⁶- electrons into 4р_1/2 and 4р_3/2-states.

And finally, the wide, flat hump E on the XPS is formed by the 5s states of Eu, in which there is a splitting of the electron states with spin-up and spin-down, “smeared” on the spectrum due to hardware distortion.

Calculations of optical characteristics using Eu₂Zr₂O₇ as an example. The output data from the EES calculations of the compound Eu₂Zr₂O₇, namely the dispersion curves and the DOS, were used to calculate the frequency-dependent complex dielectric function Ɛ(ω) = Ɛ₁(ω) + iƐ₂(ω). At the first stage of calculating the dielectric function, the imaginary part of the dielectric function tensor Ɛ₂(ω) was calculated using formula (2). Figure 9 shows the imaginary part of the dielectric function Ɛ₂(ω) as a function of photon energy (frequency). The main peaks and fine structure details of the curve Ɛ₂(ω) are indicated: A, B, C, D, E, F, whose energies are given in Table 5.

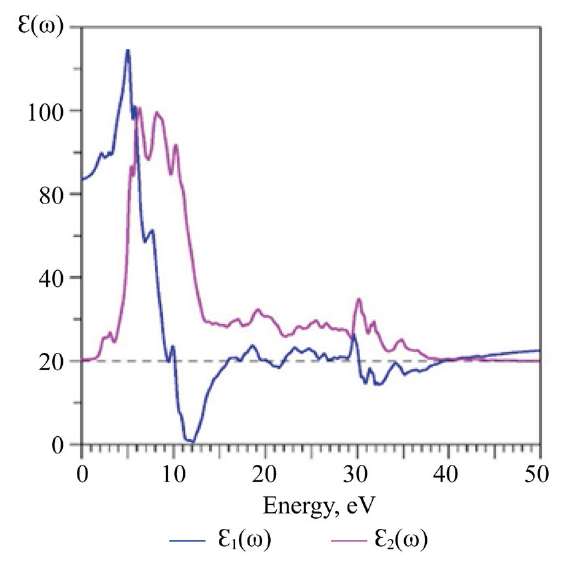

Together with Ɛ₂(ω), Figure 9 shows a graph of the real part of the permittivity Ɛ₁(ω) calculated using the Kramers–Kronig formula (3).

As in other studied pyrochlores, cross-transitions between atoms were not taken into account in the calculation of Ɛ₂(ω) for Eu₂Zr₂O₇. Thus, the key features of the fine structure of the imaginary part of the permittivity Ɛ₂(ω) can be interpreted as follows:

For the Eu₂Zr₂O₇ compound, absorption coefficient α(ω) (4), refractive index n(ω) (5), absorption coefficient k(ω) (6), optical reflection coefficient R(ω) (7) and electron energy loss spectrum L(ω) (8 were calculated, respectively, using formulas (4–8) [23]. The above optical characteristics for Eu₂Zr₂O₇ are shown in Figures 10 and 11.

Discussion. In all groups of compounds studied in this work, the main contribution to the upper part of the valence band is given by the p-states of atoms with the highest electronegativity (chalcogens, halogens). This can be explained by a decrease in the binding energy of the p-states of chalcogens and halogens in a crystal, compared to their bonding in an isolated atom, due to the transfer of electron density from nearby metal atoms to them, and the resulting increase in the shielding of these states from the nucleus. The S-states of these atoms form the bottom of the valence band.

For compounds with atoms containing f-electrons, states of 5s-symmetry, which have different spins, are split in energy under the impact of the internal magnetic field of 4f-electrons.

The applied aspect of this research is related to the fact that the use of new materials in quantum electronics, optoelectronics, and nonlinear optics is determined by the response of the crystal under study to the action of an electron wave with a frequency lying in the optical or near and mid-IR range, that is, near the forbidden gap of the semiconductor (E_g). The crystal response can be described using the permittivity tensor (ε_ij), which was calculated in this study for a number of complex three- and four-component chalcogenides, halides, and oxides. Of academic interest is the effect of the electron states of the rare-earth element contained in the studied pyrochlores on the electron-energy structure of these compounds.

Conclusion. The main objective of the work is achieved. The results of the study on the electron-energy structure of various groups of compounds: chalcogenides Tl₃TaS₄, Tl₃PS₄, Sn₂P₂S₆, InPS₄, Cu₂CdGeS₄, Ag₂CdSnS₄, Ag₂HgSnS₄, halides Cs₂HgX₄ (X — Cl, Br, I) and APb₂Br₅ (A — K, Rb), oxides La₂Zr₂O₇ and Nd₂Zr₂O₇ and Ln₂Zr₂O₇ (Ln = La, Nd, Sm, Eu, Gd) are summarized. The problems of determining the effect of local partial electron states on the features of the electronic structure of the studied compounds and their optical properties are solved.

Such studies are important in the problems of modeling new materials with given properties, since they allow us to determine which factors have the main influence on the occurrence of such properties.
